For Automated Extraction of Viral DNA/RNA from Plasma, Serum and Body Fluids
MagCore® Viral Nucleic Acid Kits are designed to isolate viral DNA and/or RNA from plasma, serum, and cell-free body fluids. Large volume extraction kits are developed to accommodate the small amount of nucleic acid in respect to volume. All plastic consumables included in the kits are DNase/RNase-free to minimize the risk of nucleic acid degradation. Our patented magnetic beads will bind to the short DNA fragments with high affinity. This highly specific binding technology will ensure that all important genetic information is collected efficiently.
Product Series
Code 201 MagCore® Viral Nucleic Acid Extraction
Code 202 MagCore® Viral Nucleic Acid Extraction Kit (Low PCR Inhibition)
Code 203 MagCore® Viral Nucleic Acid Extraction Kit (High Sensitivity)
Code 210 MagCore® Viral Nucleic Acid Large Volume Extraction Kit (2.4ml)
Code 211 MagCore® Viral Nucleic Acid Large Volume Extraction Kit (1.2ml)
Features
- Consistent and reproducible results
- Cartridges are pre-filled and sealed to prevent contamination
- Minimal manual pipetting, complete automatic procedure from cell lysis to elution
Applications
MagCore® automated extraction systems allow processing multiple sample types in the same run, including:
- Plasma
- Serum
- Body fluids
Purified DNA available for direct usage in downstream applications, such as:
- PCR and real-time quantitative PCR
- Southern Blot
- Next Generation Sequencing
- Genotyping
Performance
Virus-1

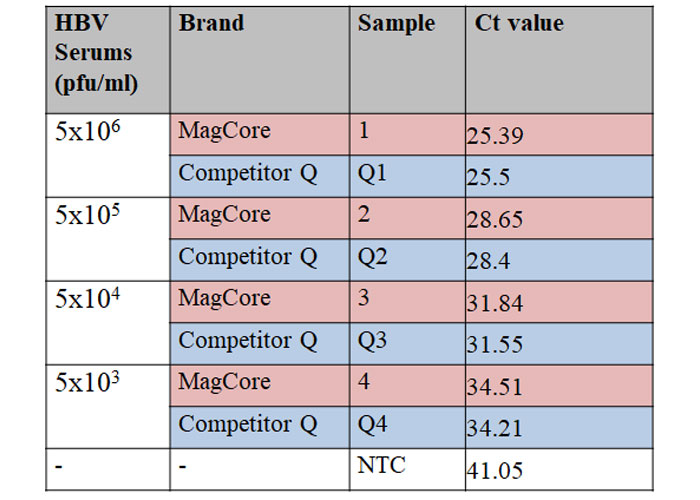

Table 1. HBV nucleic acid purified by MagCore® automated extraction system and competitor Q viral nucleic acid extraction product. HBV samples of 200µl from the same donors in serial 10-fold dilutions were used for viral DNA isolation. Ct Values were obtained from Real-Time PCR results. No significant difference was observed in the Ct values between results from MagCore® and competitor Q products. Non template control (NTC) was included as a reference.
Virus-2

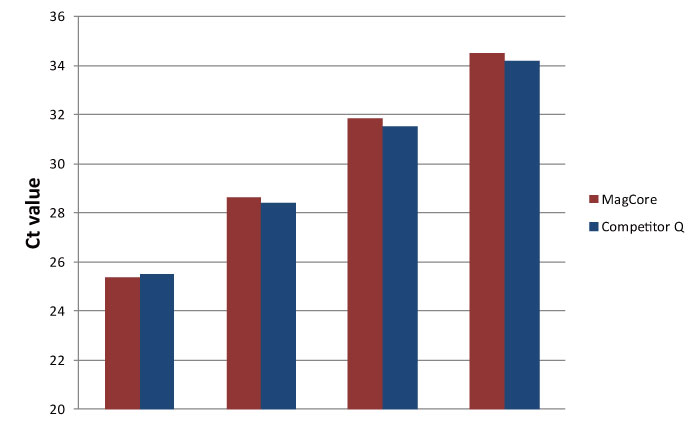

Figure 1. HBV nucleic acid purified by MagCore® automated extraction system and competitor Q viral nucleic acid extraction product. HBV samples of 200µl from the same donors in serial 10-fold dilutions were used for viral DNA isolation. Ct Values were obtained from Real-Time PCR results. No significant difference was observed in the Ct values between results from MagCore® and competitor Q products. Non template control (NTC) was included as a reference.
Virus-3

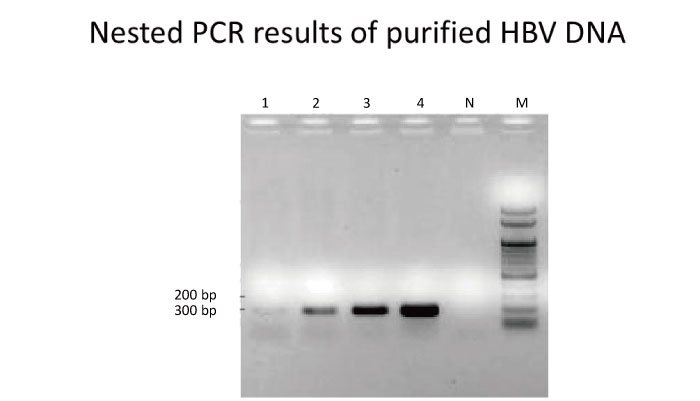

Figure 2. Nested PCR results of HBV nucleic acid purified by MagCore® automated extraction system. Consistency in yield and reproducibility of viral nucleic acid extraction from serial 10-fold diluted samples were investigated by Nested PCR. Consistent positive relationship between sample concentrations and the quantity of corresponding Nested PCR products was observed. Negative control was included to rule out possible contamination. Lane 1: 1 pfu/ml HBV serum; Lane 2: 10 pfu/ml HBV serum; Lane 3: 1 x 102 pfu/ml HBV serum; Lane 4: 1 x 103 pfu/ml HBV serum; Lane N: Negative Control; Lane M: RBC 100 bp DNA Ladder Marker
Virus-4

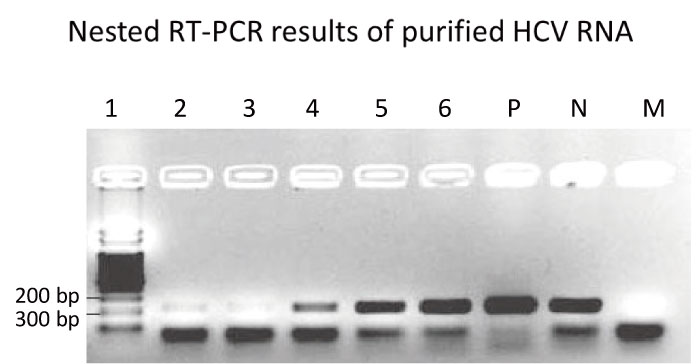

Figure 3. Nested PCR results of HCV nucleic acid purified by MagCore® automated extraction system. Isolated HCV RNA from samples was applied to Reverse Transcriptase-PCR for further analysis. Consistency in yield and reproducibility of viral nucleic acid extraction from serial 10-fold diluted samples were investigated by Nested PCR. Positive relationship between sample concentrations and the quantity of corresponding Nested PCR products was observed. Lane 1: 5 pfu/ml HCV serum; Lane 2: 50 pfu/ml HCV serum; Lane 3: 5 x 102 pfu/ml HCV serum; Lane 4: 5 x 103 pfu/ml HCV serum; Lane 5: 5 x 104 pfu/ml HCV serum; Lane 6: 5 x 105 pfu/ml HCV serum; Lane P: Positive Control; Lane N: Negative Control; Lane M: RBC 100 bp DNA Ladder Marker.
Specifications
| MagCore® Plus II/Super/HF16 Plus | |||
|---|---|---|---|
| Cartridge Code | 36 Preps Cat No. | 96 Preps Cat No. | Running Time |
| 201 | MVN400-01 | MVN400-02 | 44 mins (sample volume: 200µl) |
| 55 mins (sample volume: 400µl) | |||
| Optical detection is not provided | |||
| 202 | MVN400-03 | MVN400-04 | 56 mins (sample volume: 200µl) |
| 72 mins (sample volume: 400µl) | |||
| Optical detection is not provided | |||
| 211 | MVN1200 | 80 mins (sample volume: 1200µl) | |
| Optical Detection is not provided | |||
| MagCore® HF48 | ||||
|---|---|---|---|---|
| Cartridge Code | 36 Preps Cat No. | 96 Preps Cat No. | Running Time (24 samples) | Running Time (48 samples) |
| 201 | MGB400-01 | MGB400-02 | 48 mins (sample volume: 400µl) | 99 mins (sample volume: 400µl) |
| 56 mins (sample volume: 400µl) | 115 mins (sample volume: 400µl) | |||
| 202 | MVN400-03 | MVN400-04 | 60 mins (sample volume: 200µl) | 117 mins (sample volume: 200µl) |
| 69 mins (sample volume: 400µl) | 138 mins (sample volume: 400µl) | |||
| 211 | MVN1200 | 73 mins (sample volume: 1200µl) | ||
| Components Available for Purchase | ||
|---|---|---|
| Product | Cat No. | Content |
| Proteinase K Set | PK011 | 11 mg Proteinase K, 1.25 ml PK Storage Buffer |
| RNase A | RN050 | 50µl RNase A (50mg/ml) |
| RN130 | 130µl RNase A (51mg/ml) | |
