MagCore®Plus II

MagCore® Plus II

MagCore® Plus II is the newest robotic bench-top workstation for a fast and high-yield nucleic acid purification from virtually all molecular diagnostic, biological, clinical and forensic sample types. With small footprint, light weight, user friendly interface, and a broad range of entirely built-in programs with free upgrades, 1-16 samples can be isolated simultaneously at your fingertip. The instrument simplifies your daily routine providing full traceability of kits and samples, through real-time mobile monitoring and a complete report that can be downloaded on a computer at the end of each run.

Features
特點圖示-03

Worldwide patented magnetic beads

特點圖示-07

Ideal for both DNA/RNA extraction

特點圖示-01

Throughput up to 16 samples per run

特點圖示-11

Full traceability of the samples and kits

特點圖示-06

Real-time mobile monitoring

特點圖示-04

UV Decontamination

Upgradeable via USB

Purified DNA/RNA can be applied directly to PCR, microarrays, NGS, and more

特點圖示-08

Barcode scanner(optional)

Extraction Principle

Unlike the traditional method of purifying nucleic acid, RBC patented magnetic beads allow specific binding to DNA/RNA with minimal cross-contamination and no clogging concerns. To live out the idea of walkaway automation, we are always optimizing our program and protocol to allow users to apply specimens directly onto our systems with minimal pretreatment.

Easy To Use

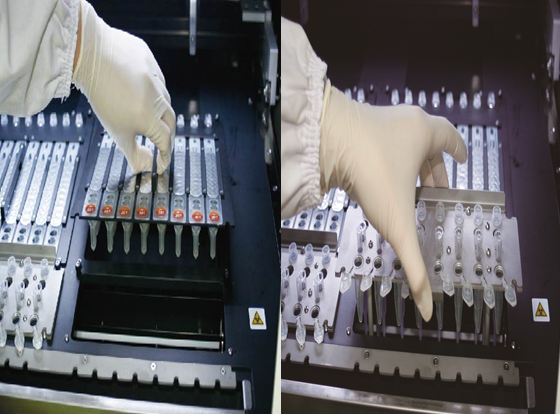

照片合併

Load Samples And Install Accessories.

PLUS II input user's name

Input User's Name.

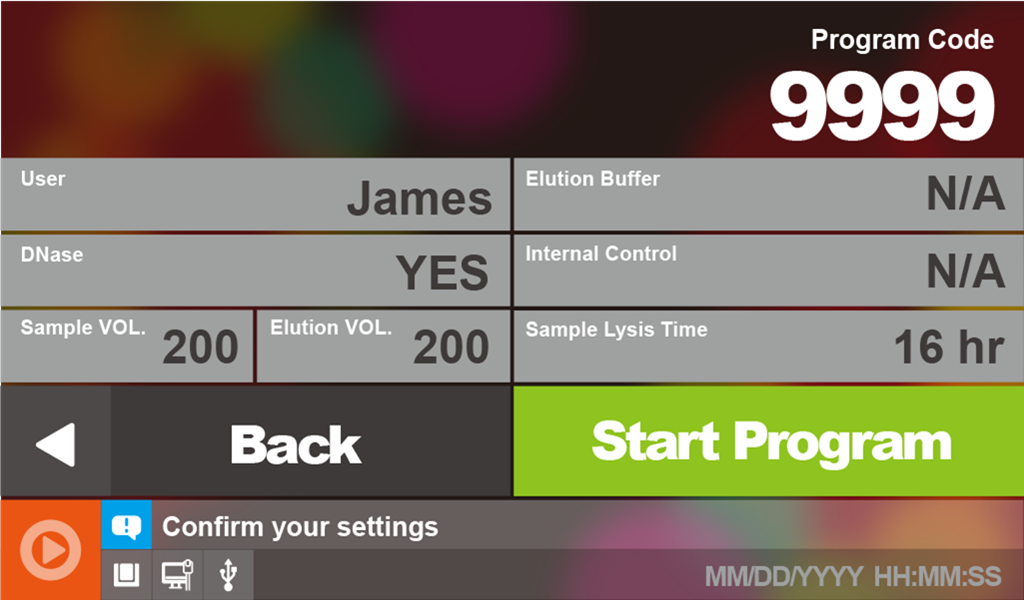

BIG plus II start program

Press Start Program to begin the extraction

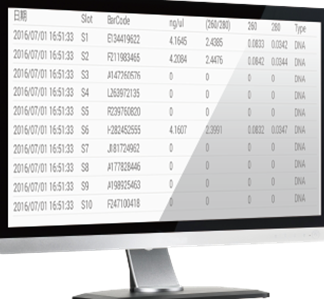

plus II data

Open the run report on your computer

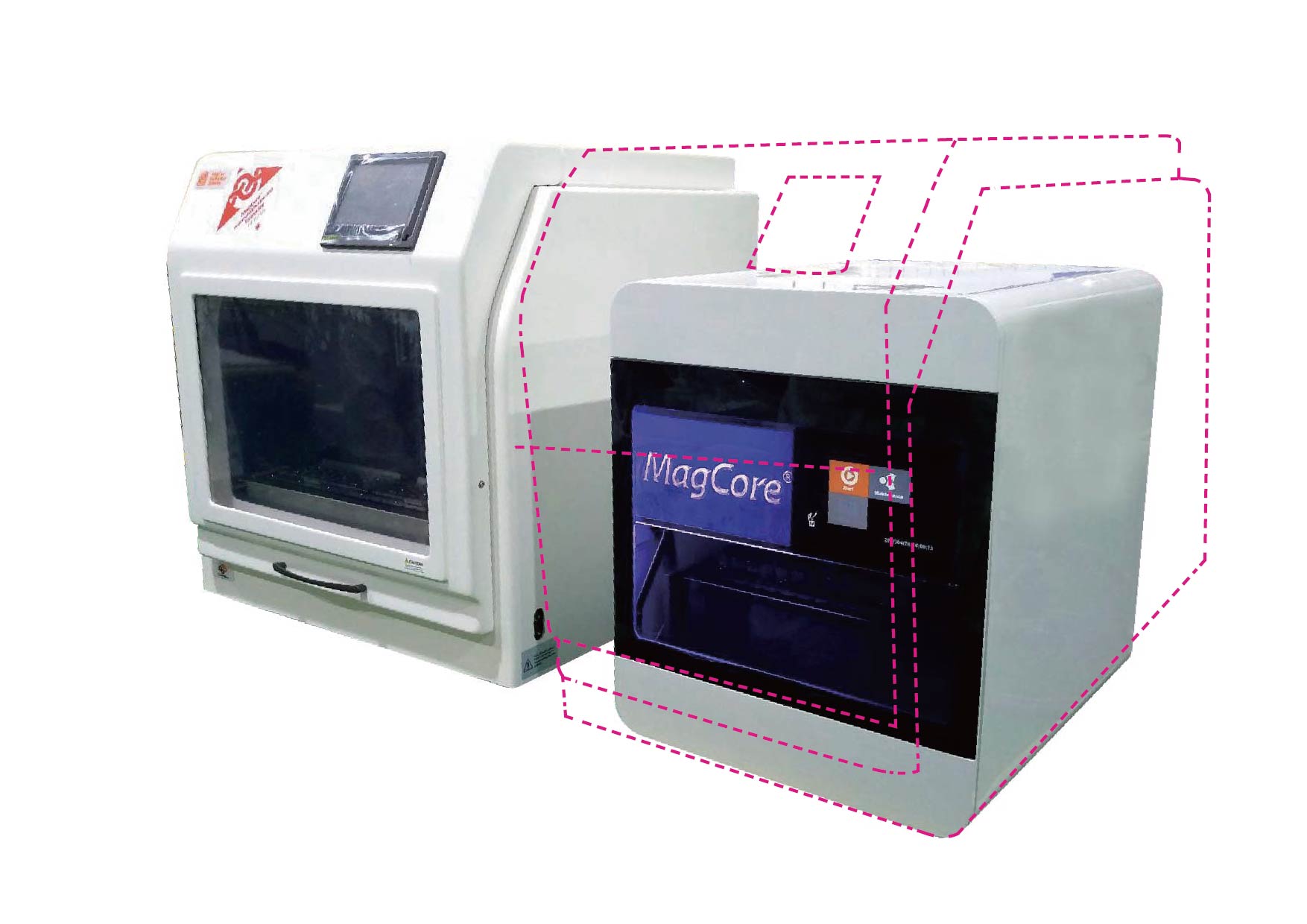

Same throughput, smaller size

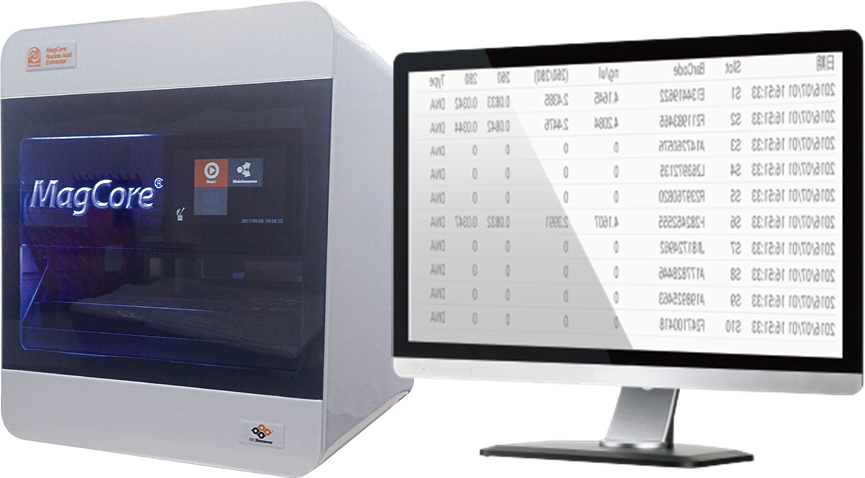

Full traceability of the samples and kits(LIMS)

A report in .cvs is generated at the end of each run and contains all relevant data: user's name, sample and kit barcode, protocol number, sample and elution volume, start and end time. The file, opened on a computer, can be subsequently processed by a LIMS.

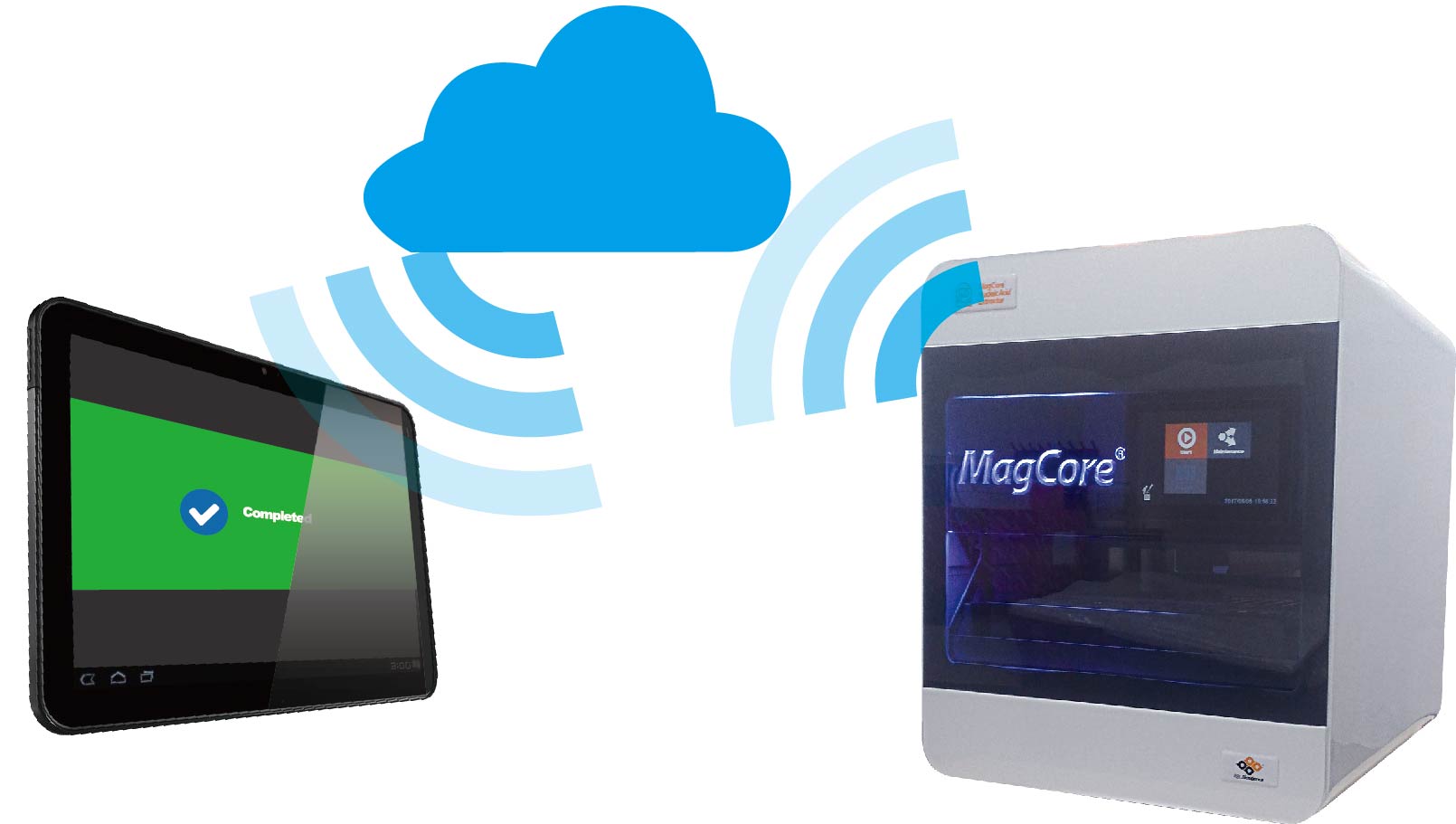

Real-Time Mobile Monitoring

During the run, the instrument HMI can be accessed via Wi-Fi from your smartphone/tablet through our App, to see real-time information about the run processing status, remaining time and errors. Android and iOS compatible.

Specifications
ContentDetails
Power Supply

Voltage: AC 100-240V; Frequency: 50/60Hz

Power Consumption>1.5 kVa
Pipetting UnitX-, Y- and V-axis movements for sample transfer and dispense.
UV LightPower 8W, life duration 10,000 hours
Heating BlockRoom Temperature-90℃
Weight70kg/154.35lbs
DimensionsW600 x D600 x H600(mm); W23.62 x D23.62 x H23.62 inches
Electric ControlPLC module and ARM-based main board embedded in
Display Screen7-inch color touch panel
AccessoriesT-racks, cartridge racks, barcode scanner
Operating ParametersDetails
Capacity1-16 samples
Processing Time30-90 minutes
Sample Volume200μl/400μl/1.2ml/3ml/4ml
Elution Volume30/60/100/150/200 μl
Storage Temperature15-35℃
Operating Temperature18-30℃
Pollution DegreeLevel 2
