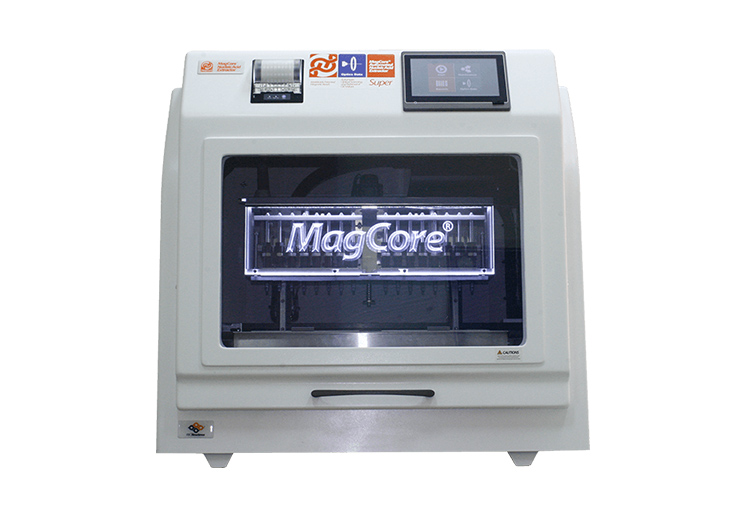

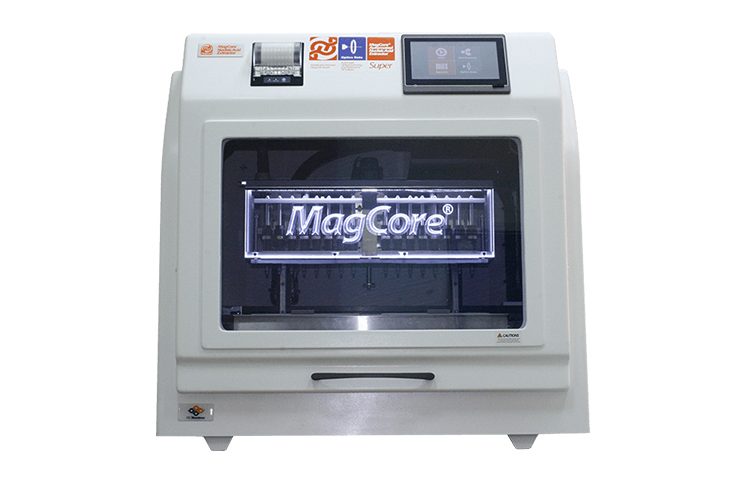

MagCore® Super
Catalog Number: MCA1602
MagCore® Super
MagCore® Super is RBC Bioscience’s most advanced and efficient automated workstation for nucleic acid extraction. It is the first platform to combine our automated extractor and spectrophotometer for immediate measurements of product purity and yield. Rapid isolation of nucleic acid with precision is achieved through RBC patented magnetic-bead technology. Adaptable to variability, MagCore® Super enables automated isolation of DNA/RNA from diverse sample sources: Blood, Plasma, Body fluids, Cells, Tissue, Plants, Bacteria, and Viruses. Simple and effortless; with LIMS and built-in programs for every type of extraction, MagCore® Super will satisfy your needs for the ultimate walkaway automation.
Features
![特點圖示-10](https://www.rbcbioscienceusa.com/wp-content/uploads/2018/01/特點圖示-10.png)
Flexible choice of samples, sample/elution volume
![特點圖示-07](https://www.rbcbioscienceusa.com/wp-content/uploads/2018/01/特點圖示-07.png)
Built-in programs for all extraction kits: Blood, Cell-free DNA, Cells, Tissue, FFPE Tissue, Plants, Bacteria, Viruses, and Forensics
![特點圖示-04](https://www.rbcbioscienceusa.com/wp-content/uploads/2018/01/特點圖示-04.png)
UV sterilization to elimate possible cross-contamination
![特點圖示-14](https://www.rbcbioscienceusa.com/wp-content/uploads/2018/01/特點圖示-14.png)
Direct A260/A280 and A320 measurement requiring no manual pipetting
![特點圖示-11](https://www.rbcbioscienceusa.com/wp-content/uploads/2018/01/特點圖示-11.png)
Laboratory Information Management System (LIMS)
![特點圖示-08](https://www.rbcbioscienceusa.com/wp-content/uploads/2018/01/特點圖示-08.png)
Plug & Play: Barcode scanner, USB data output and Thermal printer
![特點圖示-15](https://www.rbcbioscienceusa.com/wp-content/uploads/2018/01/特點圖示-15.png)
Purified DNA/RNA can be applied directly to PCR, microarrays, NGS, and more
Extraction Principle
Unlike the traditional method of purifying nucleic acid, RBC patented magnetic beads allow specific binding to DNA/RNA with minimal cross-contamination and no clogging concerns. To live out the idea of walkaway automation, we are always optimizing our program and protocol to allow users to apply specimens directly onto our systems with minimal pretreatment.
![流程圖-3](https://www.rbcbioscienceusa.com/wp-content/uploads/2018/01/流程圖-3.png)
User-friendly Interface

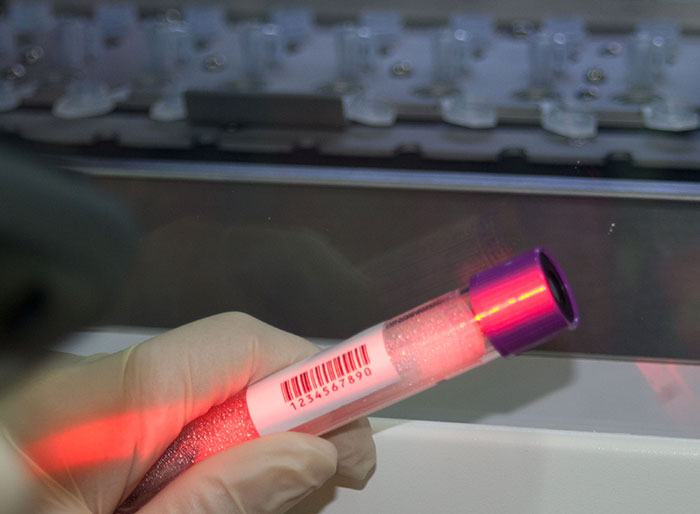

Easy Sample Tracking
![U1](https://www.rbcbioscienceusa.com/wp-content/uploads/2018/01/U1.jpg)
The provided barcode scanner enables sample tracking and monitoring.

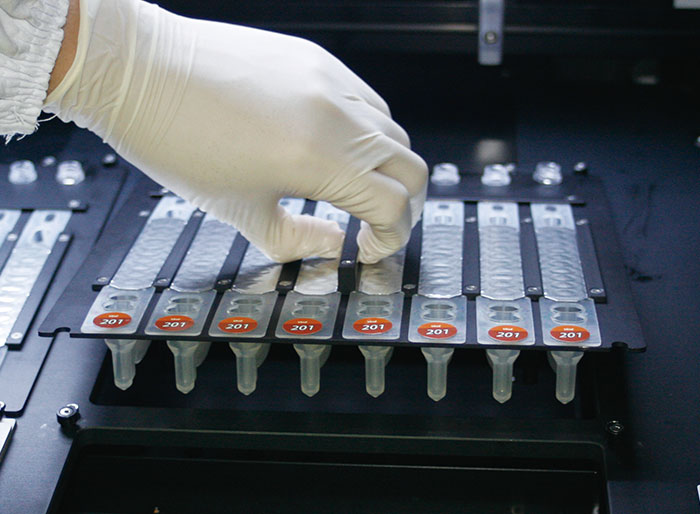

Load Accessories
![U2](https://www.rbcbioscienceusa.com/wp-content/uploads/2018/01/U2.jpg)
Place racks and tubes in their corresponding locations.

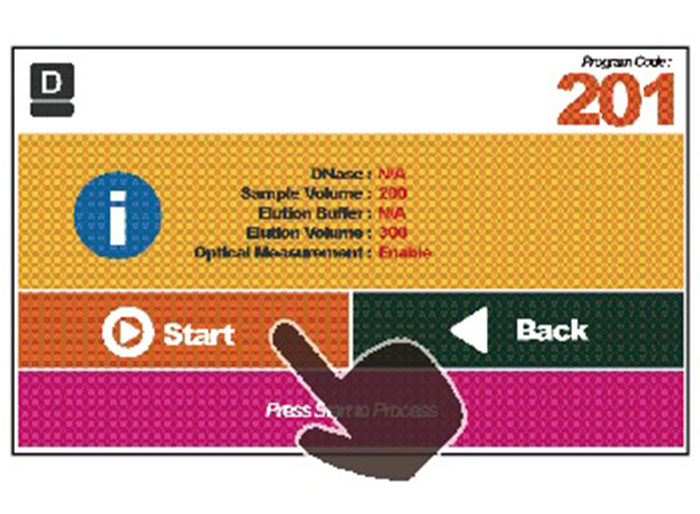

Touch Screen to Begin the Extraction
![U3](https://www.rbcbioscienceusa.com/wp-content/uploads/2018/01/U3.jpg)
Start your DNA/RNA purification with just a few clicks away!

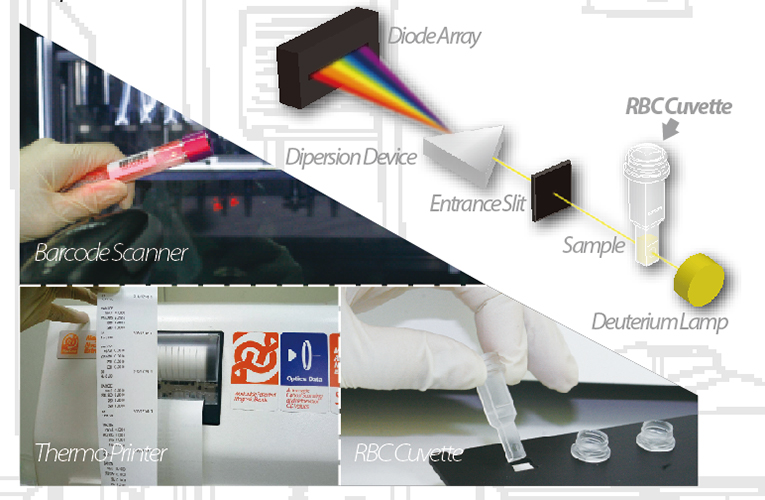

Automatic Optical Density (OD) Measurement and Data Output
No manual pipetting required. With an integrated spectrophotometer, MagCore® Super allows you to run A260/A280 and A320 OD measurements automatically with just a few clicks. Simply retrieve your data through USB or the built-in thermal printer.
![OD](https://www.rbcbioscienceusa.com/wp-content/uploads/2018/01/OD.jpg)
Specifications
Content | Details |
---|---|
Power Supply | Voltage: AC 100-240V; Frequency: 50/60Hz |
Power Consumption | >1.5 kVa |
Pipetting Unit | X-, Y- and V-axis movements for pipetting |
UV light | Power 8W, life duration 10,000 hours |
Heating Block | Room Temperature-90oC |
Weight | 76.5kg/168.68lbs |
Dimensions | W76 x D71 x H77 cm; W27.95 x D29.92 x H30.31 inches |
OD Detection light Source | Deuterium Lamp, life duration 800 hours |
Detection wavelength | 260nm, 280nm, 320nm |
OD Detection Range | ABS < 6 |
Operating Parameters | Details |
Capacity | 1-16 samples |
Processing Time | 30-90 minutes |
Sample Volume | 200μl/400μl/1.2ml/3ml/4ml |
Elution Volume | 30/60/100/150/200 μl |
Storage Temperature | 15-35℃ |
Operating Temperature | 18-30℃ |
Pollution Degree | Level 2 |

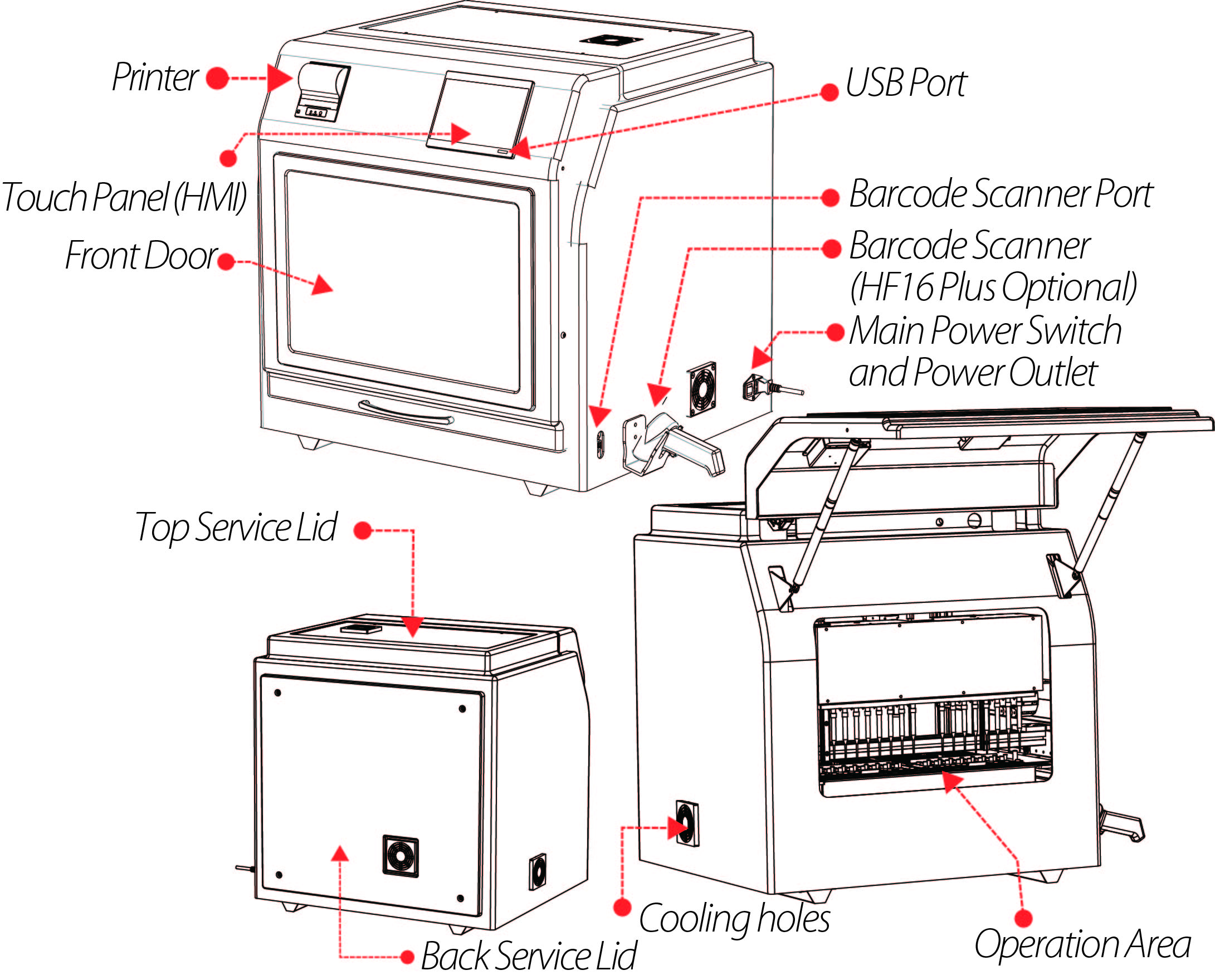

MagCore® Super System Overview
![MagCore Super system overview](https://www.rbcbioscienceusa.com/wp-content/uploads/2018/01/41.jpg)
